This document teaches you how to create a triangular model using the three-dimensional point file you have.

Creating Triangular Terrain Model
Admin 10.03.2020 Kategori : WEB GIS Education Documents

If you want to create a height model using point heights in an area, you can do the following steps. The purpose of this process is to create a terrain model from the point heights measured by surveying or obtained by other methods, to obtain information about the topography of the terrain and to use this information as a basis for other projects if necessary.

Step 1: Tools -> Surface

Prior to this process, users can create a new layer and save the triangle models on this layer or use the existing one.

On the Tools menu, click the Surface button.

Creating The Triangular Terrain Model Using Point Heights

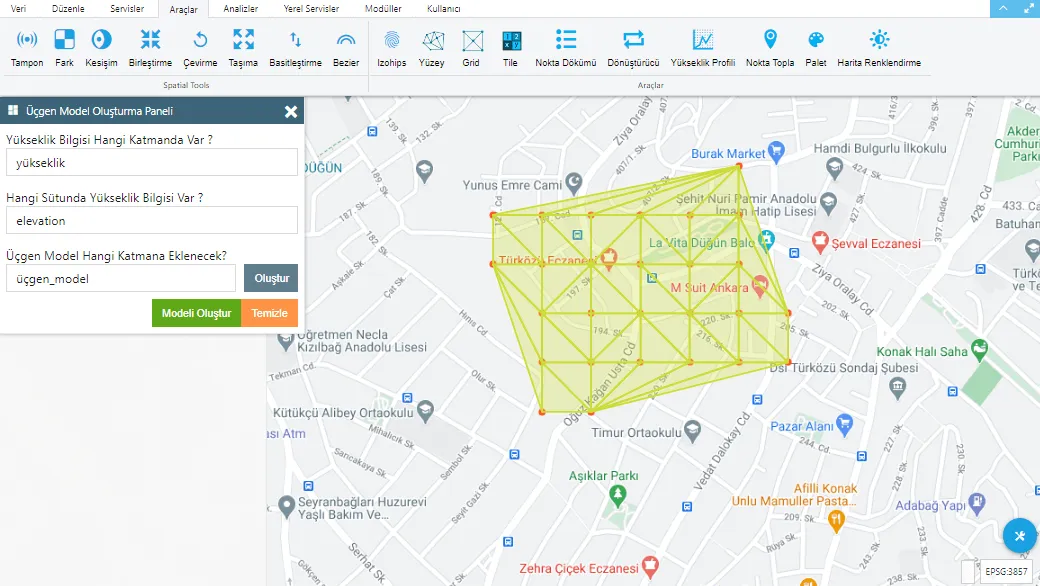

Step 2: Triangle Model Creation Panel

Creating The Triangular Terrain Model Using Point Heights

  1. From the list, select the layer from which the height values are to be taken.
  2. From the list, select the field in which the height values are stored.
  3. Select the layer to which the triangle model is to be added. When this is performed by creating a new layer, there is no change in the layer where the points are located.

Creating The Triangular Terrain Model Using Point Heights

The height information of each corner of the triangles you created is added to the attributes table of the layer with the field names a, b, c. In this way, the created triangle terrain layer can be used to calculate the height values of new points with the interpolation method.
