This document teaches you how to transform your polyline bezier.

Smoothing Geometries
Admin 10.03.2020 Kategori : WEB GIS Education Documents

Users can use this method in polygons with large distances between them, in some zoning projects, for smoothing the geometry corners or in similar tasks.

Step 1: Tools -> Smoothing

On the Tools menu, click the Smooth button.

Smoothing Geometries

Step 2: Smoothing Geometries Panel

Geometry usage method can be chosen in two different ways. The user can smooth a single geometry or an entire layer. If you do not want the existing geometries to be changed at the end of the process, the box should be checked. In this way, the smoothed curves are saved to a new layer.

2.1. Smoothing a Geometry

Smoothing Geometries

  1. The used method should be Select Geometry on the Map.
  2. To select the geometry to be smoothed click the button on the right and select geometry on the map.

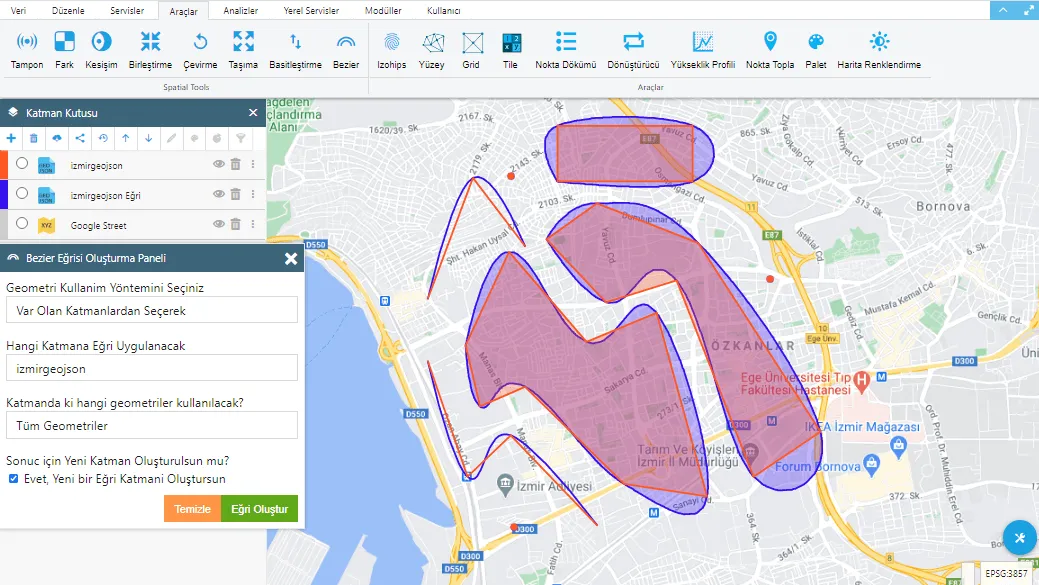

2.2. Smoothing All Geometries in a Layer

Smoothing Geometries

  1. The used method should be Select Existing Layer.
  2. You can choose the layer you want to smooth from the list.
  3. The user can smooth a single geometry or an entire layer at his request.

Smoothing Geometries

Smoothing Geometries
